Description

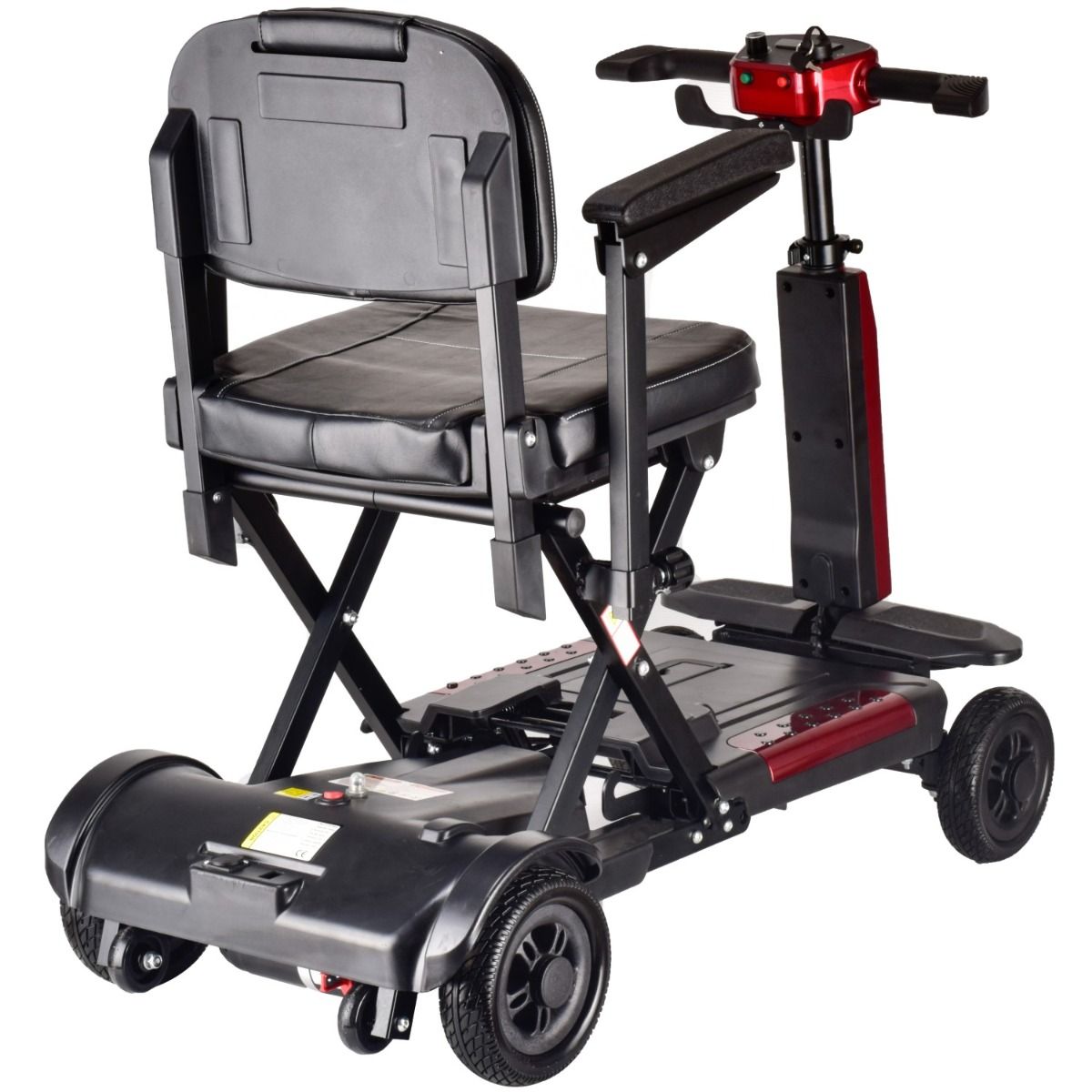

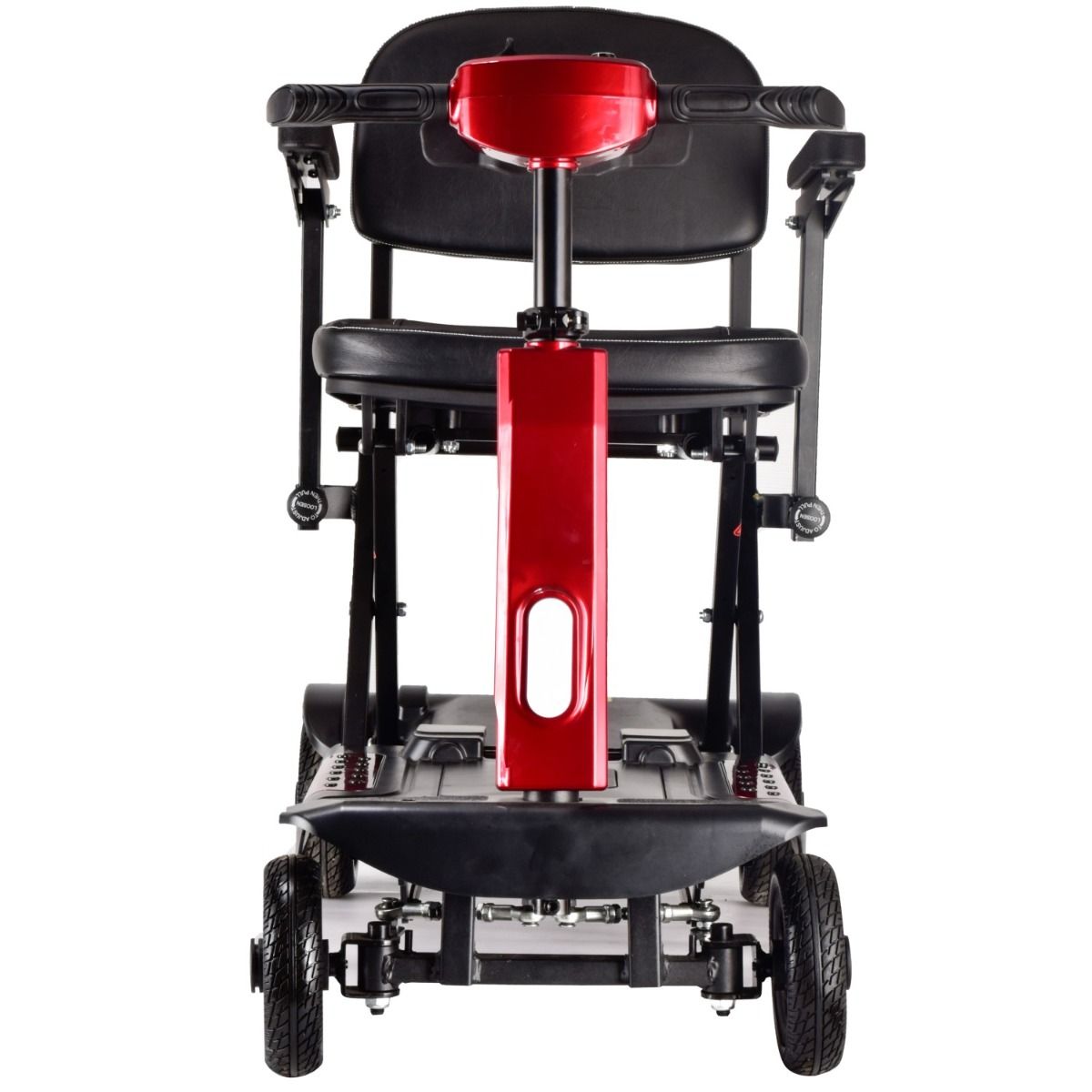

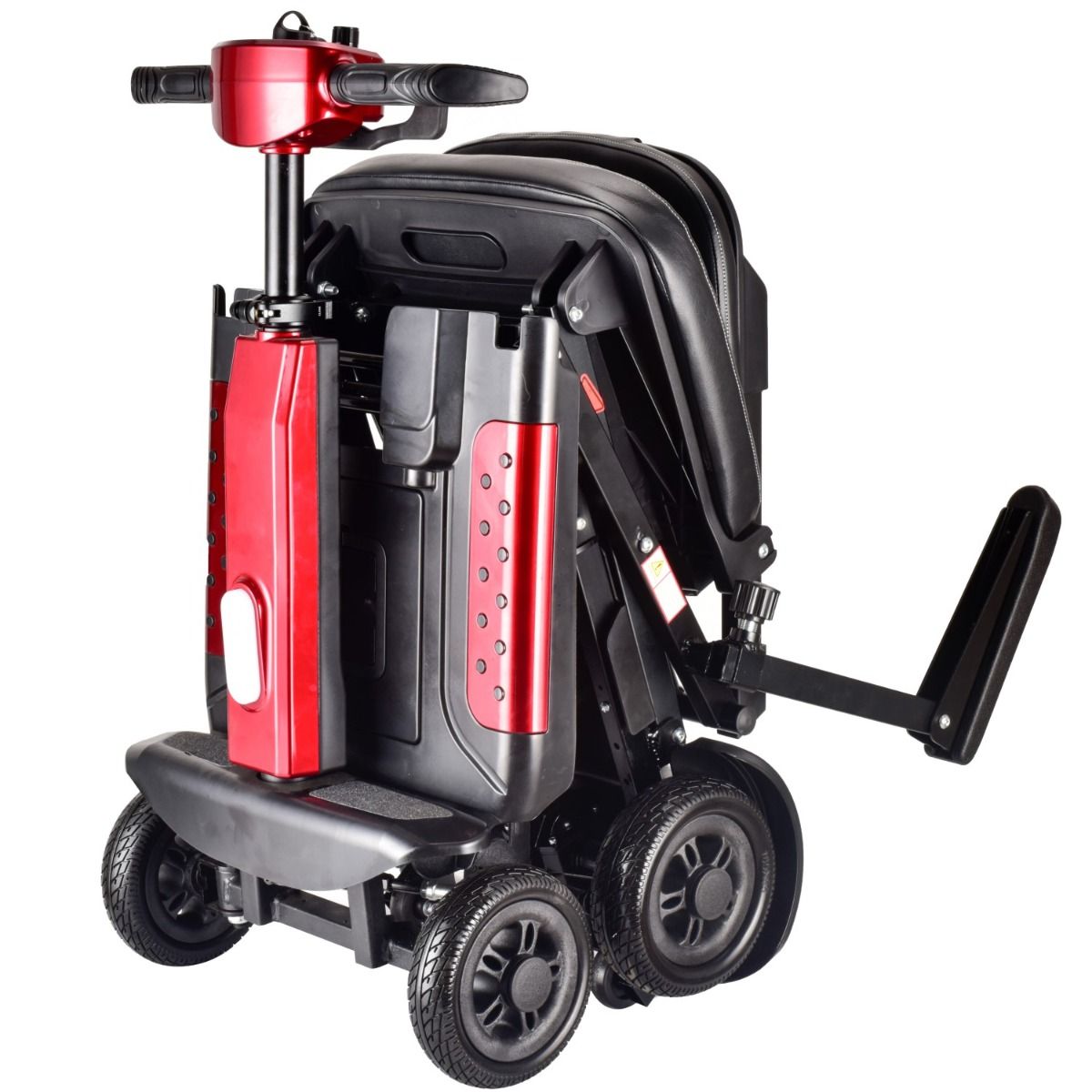

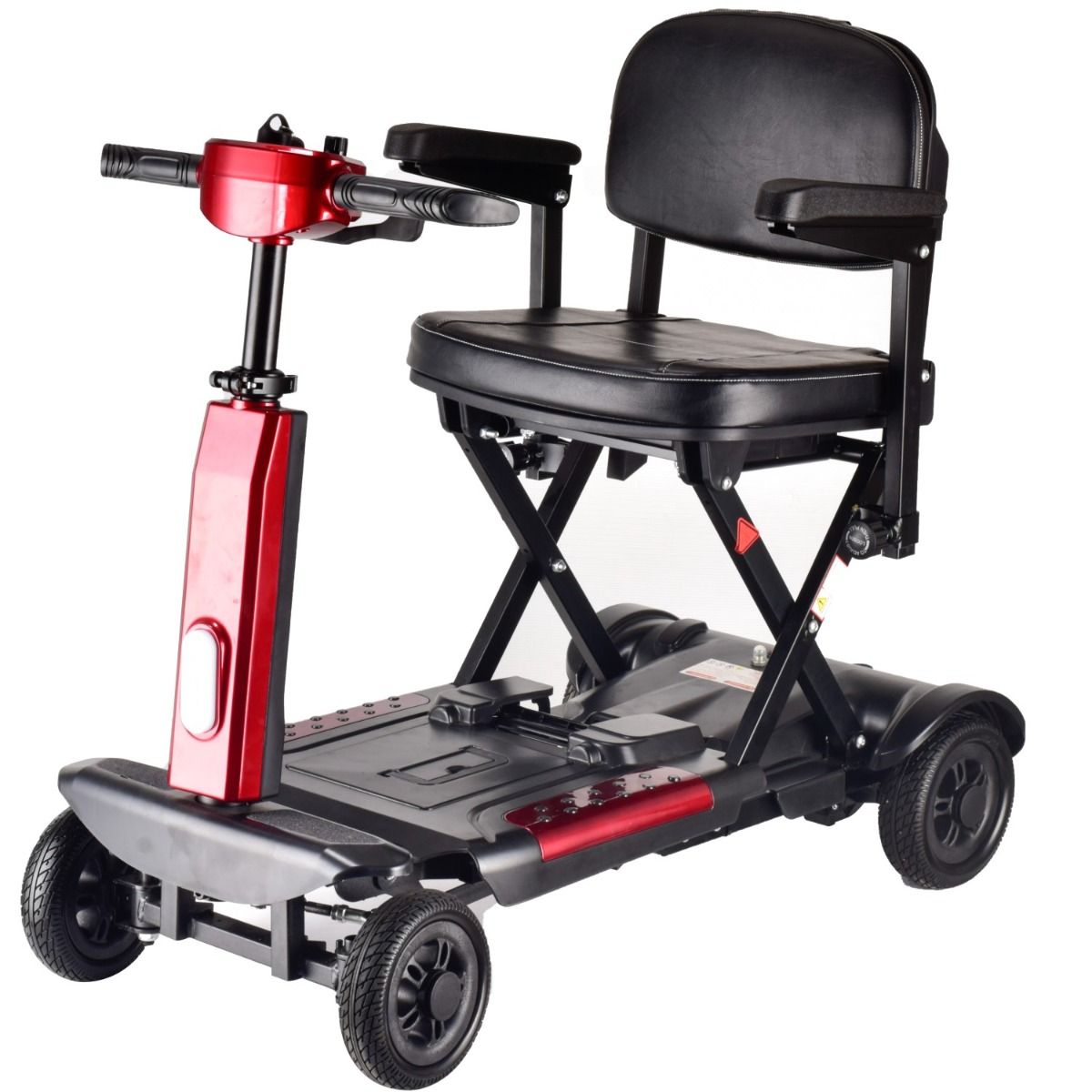

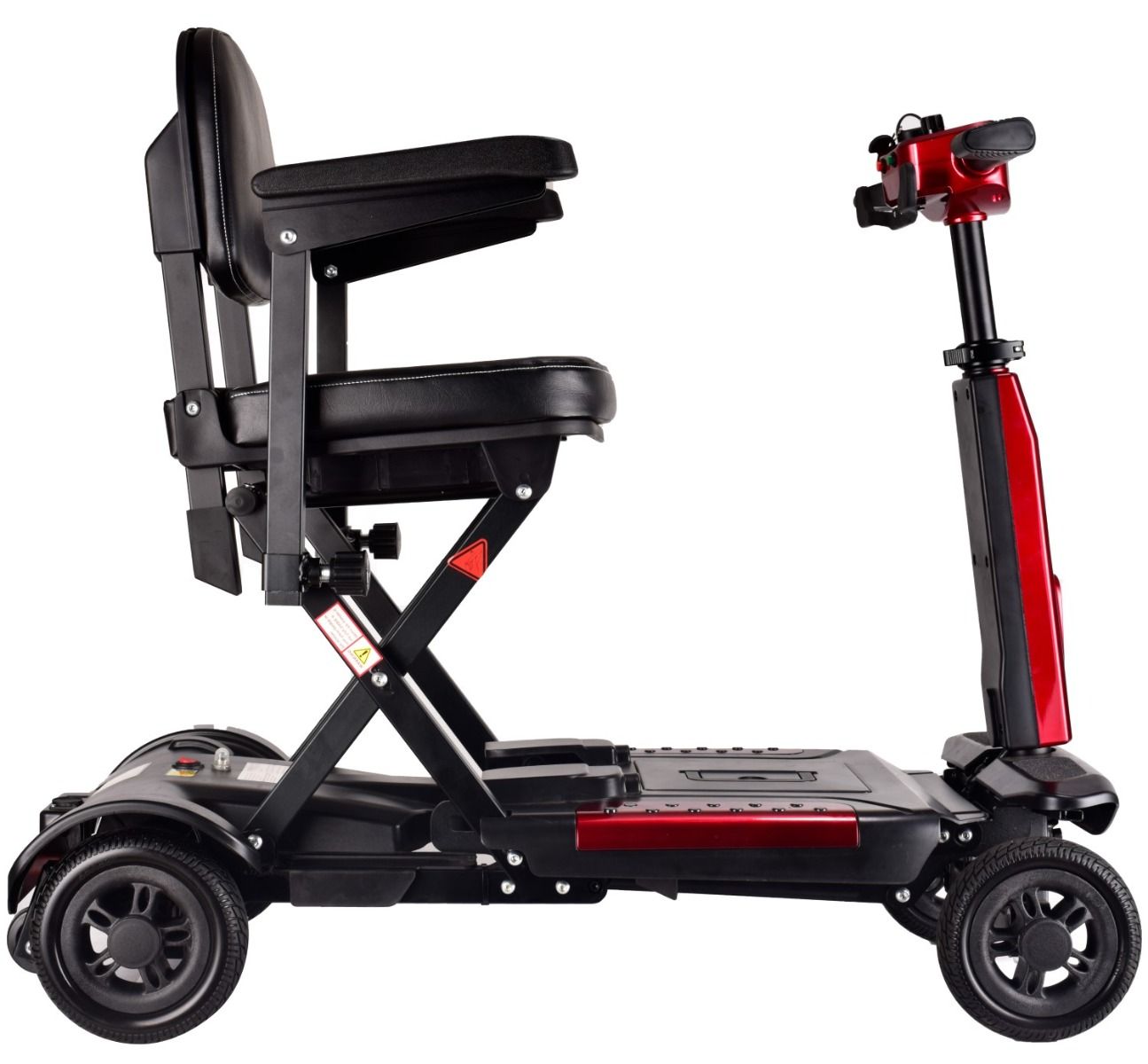

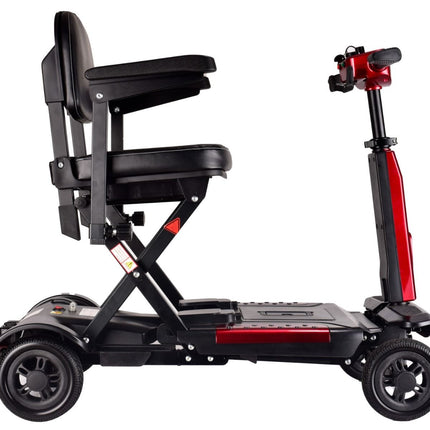

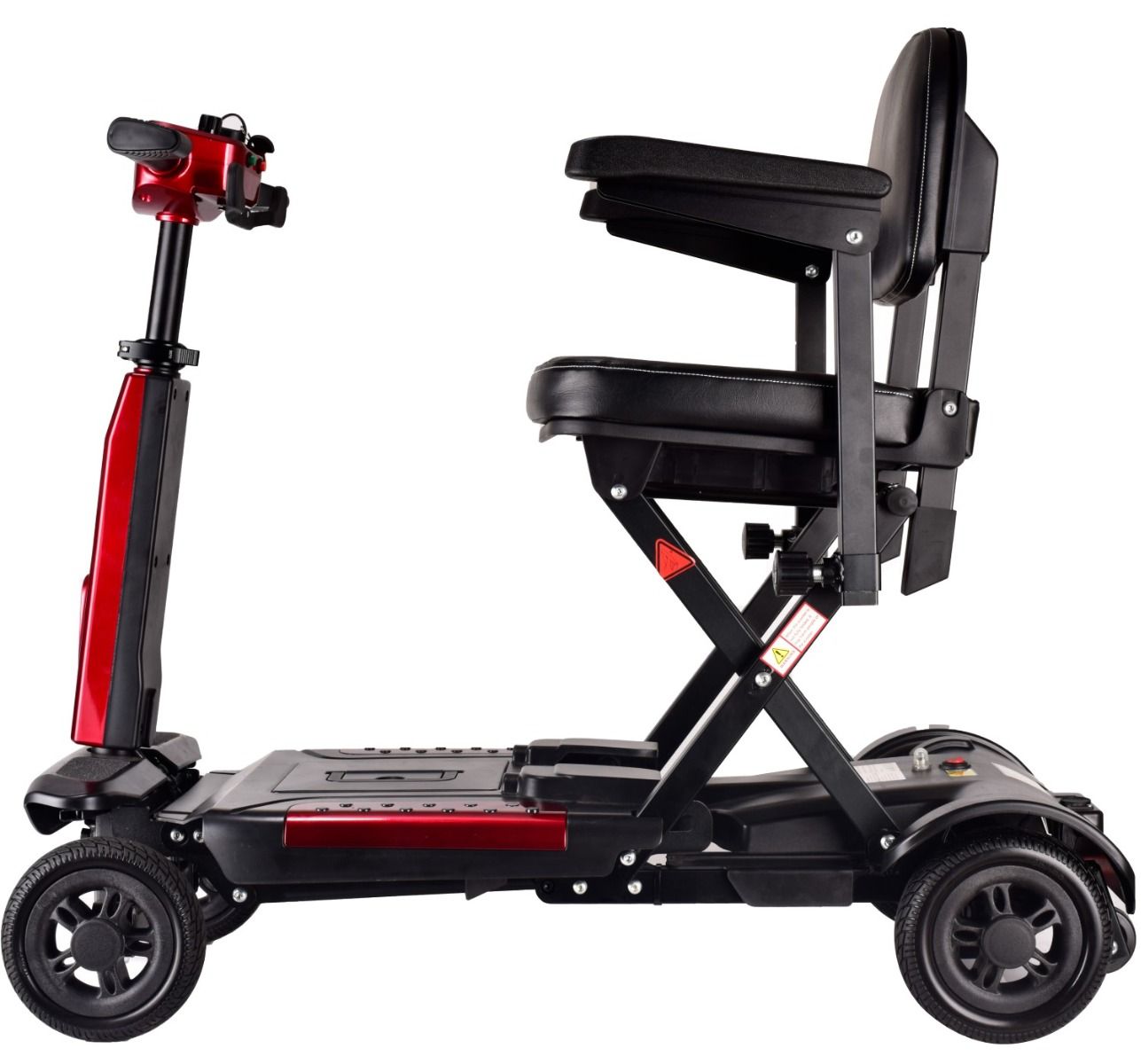

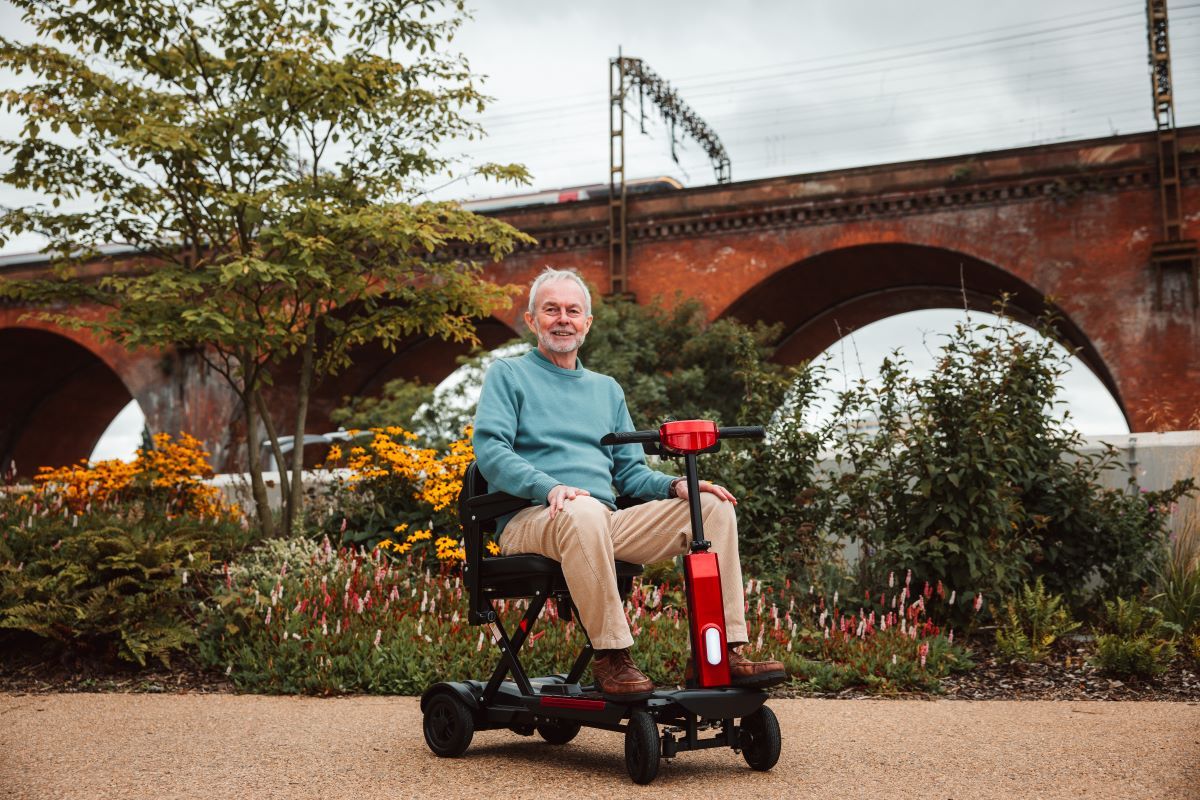

After listening to your requests, we created a lightweight mobility scooter designed to fold effortlessly for easy storage in a car boot. The innovative X5 scooter folds into a compact cube at the push of a button and unfolds just as quickly. We trimmed the weight to 24kg, making it noticeably easier to handle than many alternatives. Its removable battery allows for flexible charging options. Featuring intuitive controls with a single forward and reverse lever that engages brakes when released, the scooter ensures safety and ease of use. It handles slopes up to 12 degrees and includes rear anti-tip wheels. Adjustable handlebars and a 10-15km range per charge complete its expert design.
Specifications

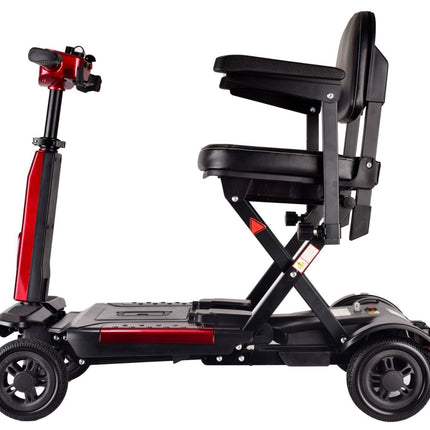

- Dimensions: 98x49x94cm
- Folded Dimensions: 37x48x70cm
- Box size: 50x50x70cm
- Color: Red
- Battery: 24V 10AH lithium removable
- Speed: 0-6km/h
- Max. load capacity: 120kg
- Ground Clearance: 75mm
- Seat Height To Foot Rest: 40cm
- Tyres: Φ 197*64mm
- Net Weight Including Battery: 24kg
- Battery Weight: 2kg
- Gross Weight Including Packaging: 28kg
- Motor: 24v 180w
- Controller: 24V 45A
- Charger: DC24V2A
- Max. climb Ability: 12°
- Brakes: Electromagnetic brake system
- Running distance: 10-15km
Features

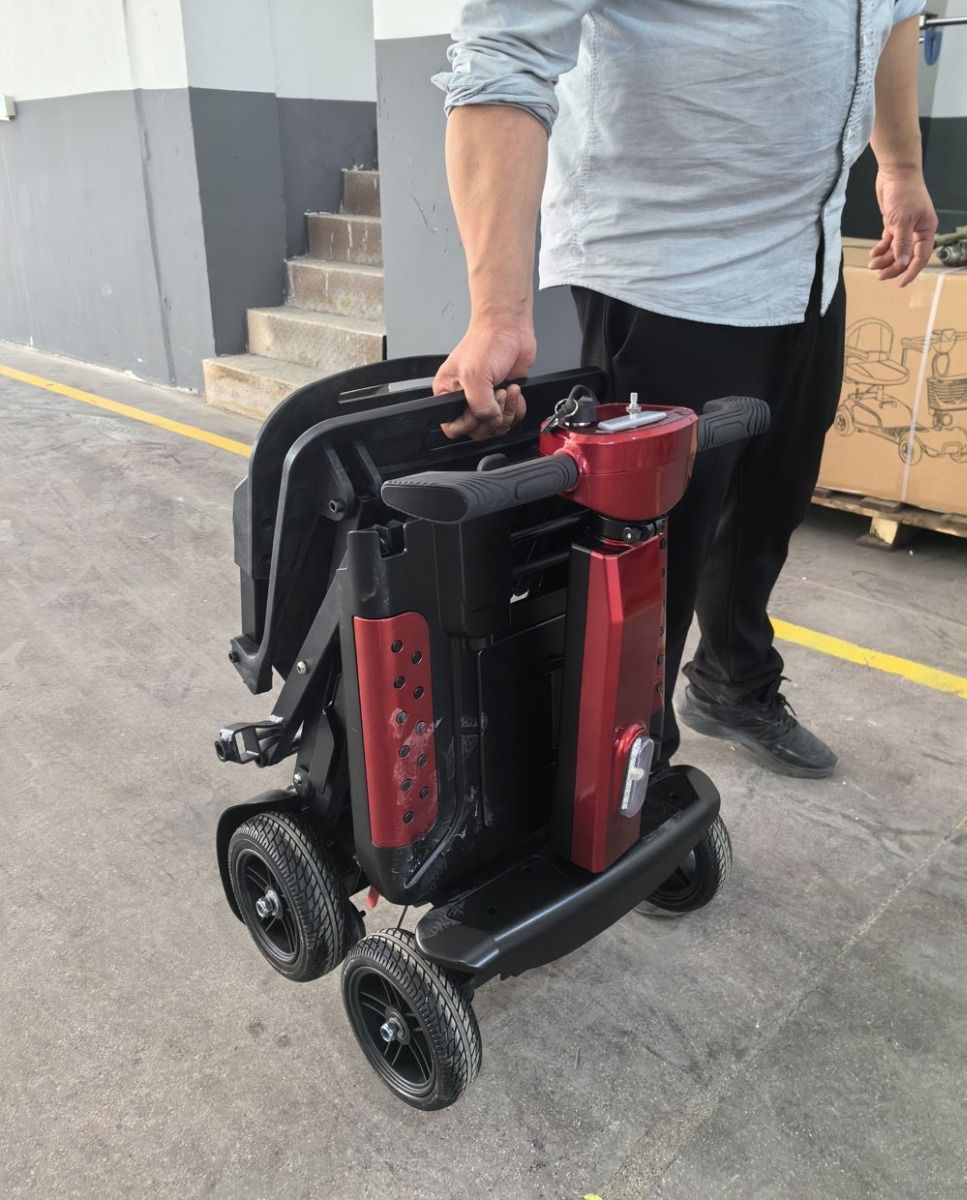

- Light weight, only 24kg including battery.

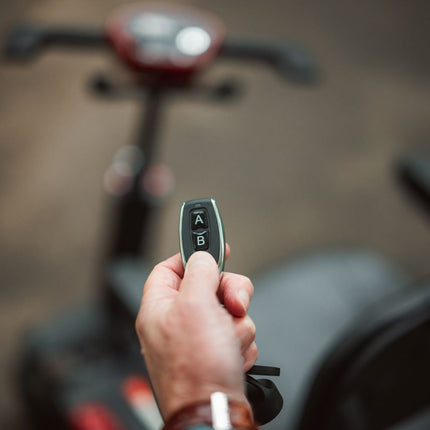

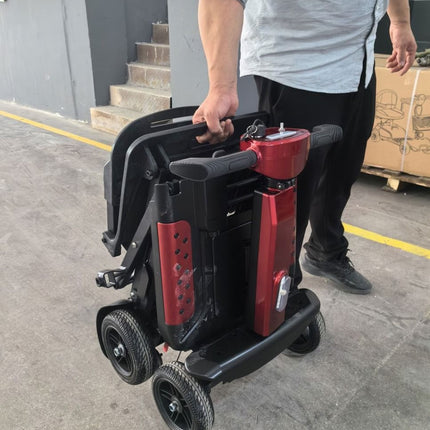

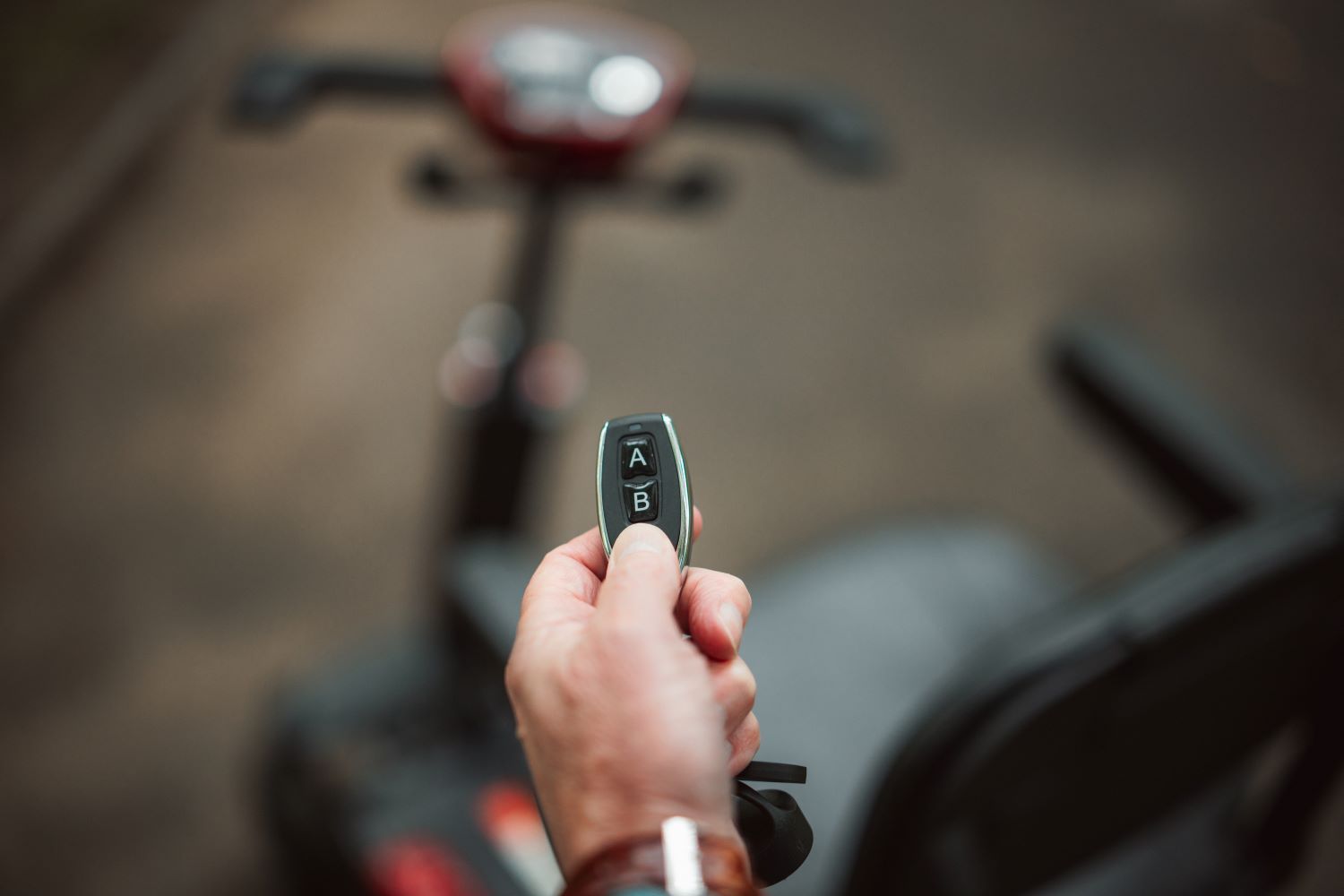

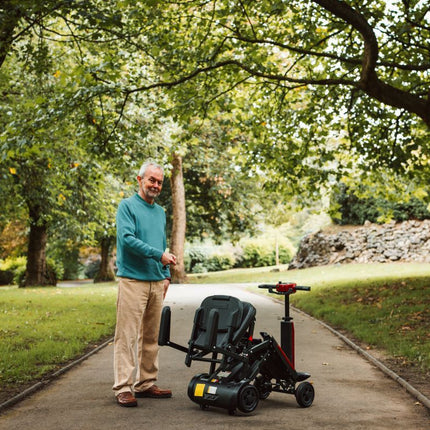

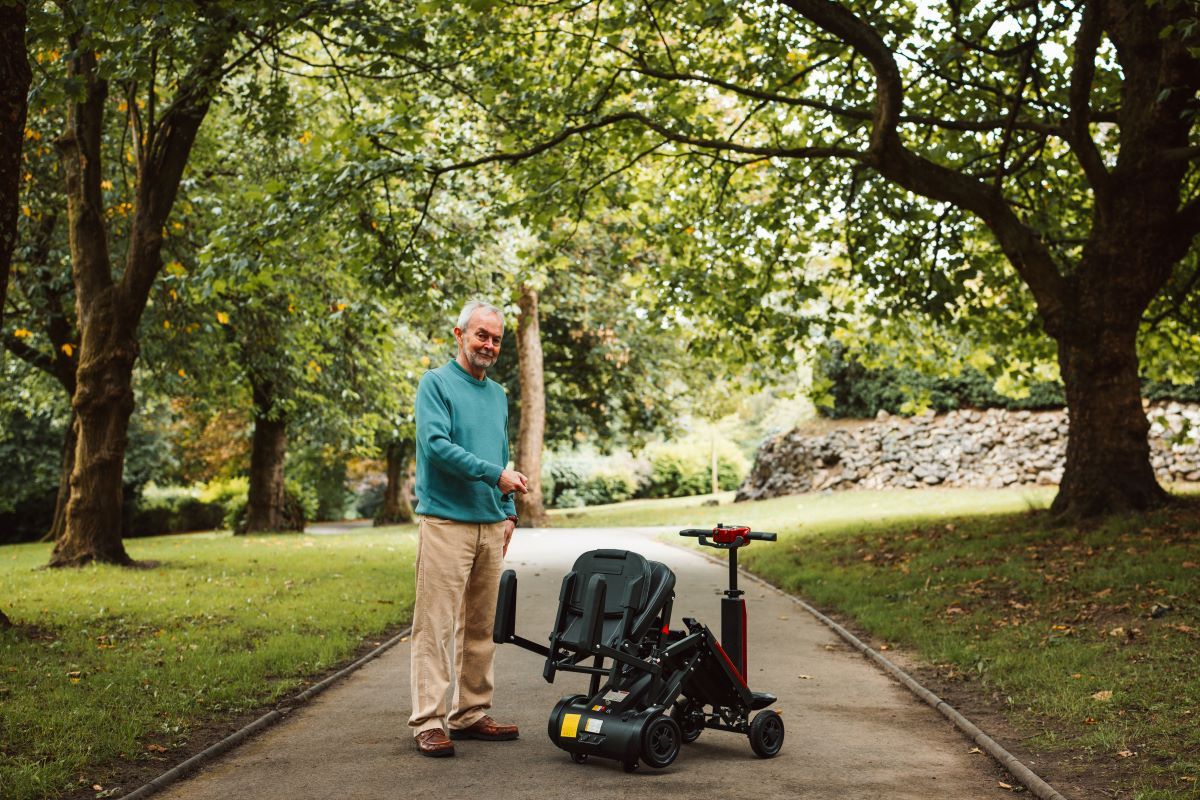

- Automatically folds down for transport using remote or button on scooter.
- Legal to use on pavements.

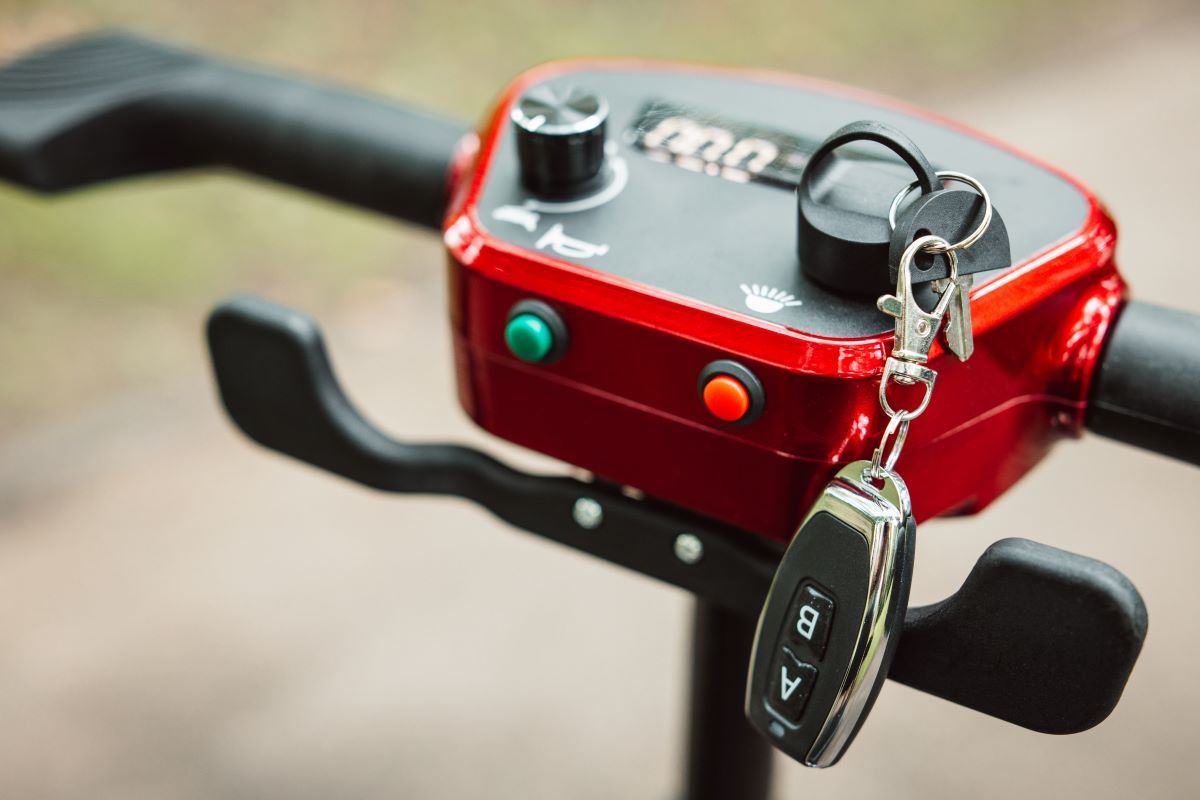

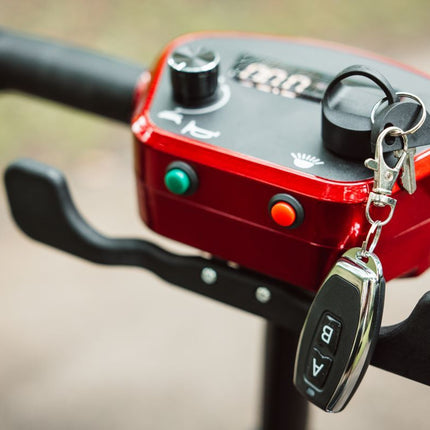

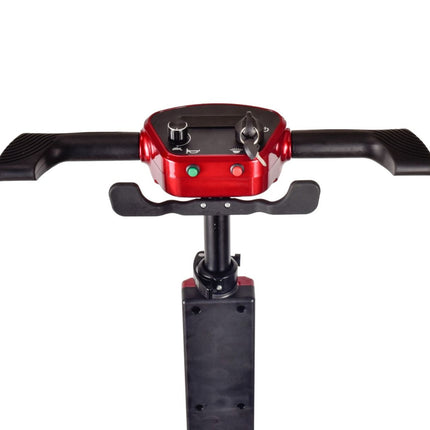

- Easy to use. One lever to go forward and one lever to go backward.
- Electromagnetic brake, when you release the lever, the scooter will automatically brake for safety.
- 12° maximum driving slope is suitable for most terrain.
- Puncture proof hardened rubber tyres.
- Large LED headlamp and reflector for safer driving in the dark.

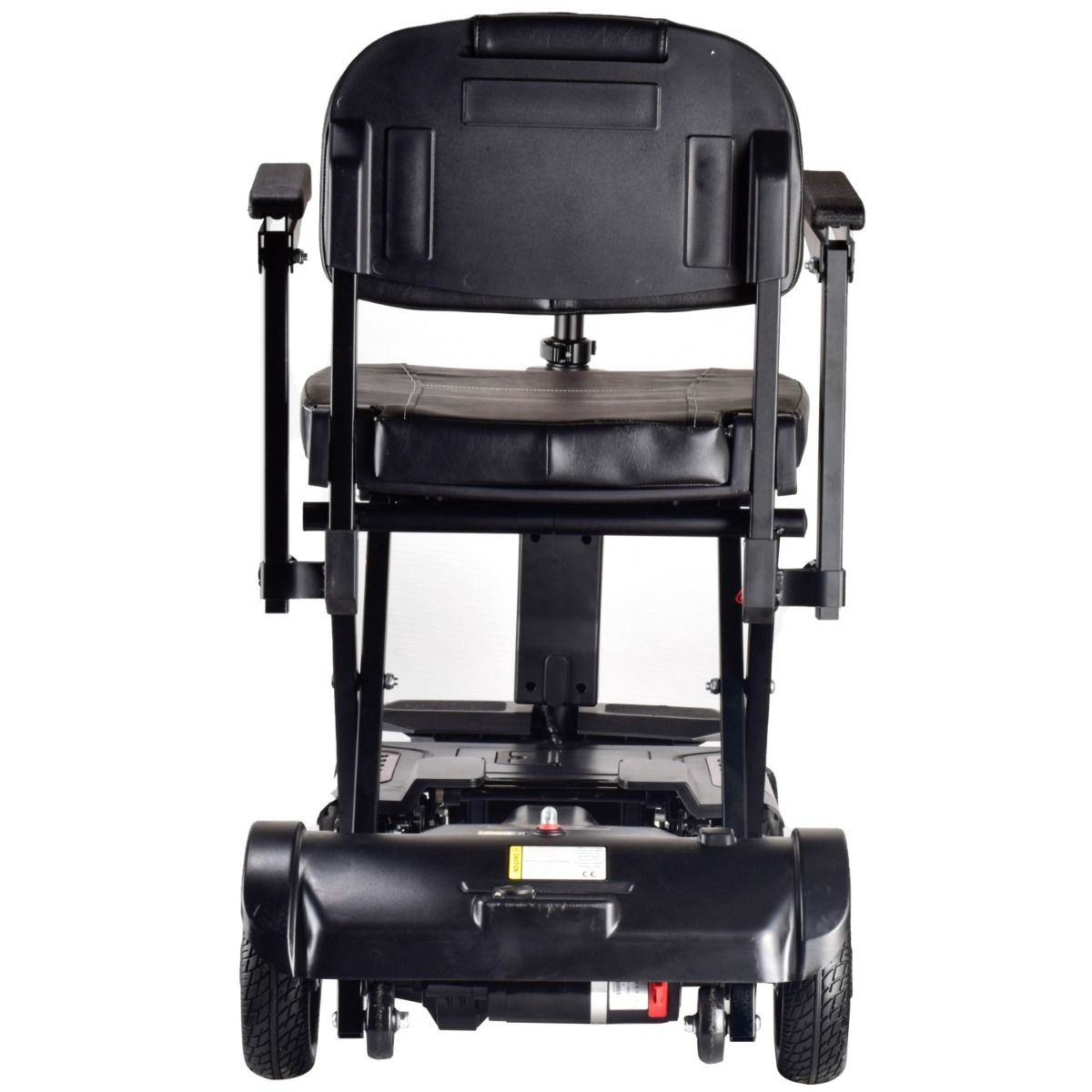

- Anti-roll rear safety wheels.
- Freewheel mode so can be pushed easily if wanted.

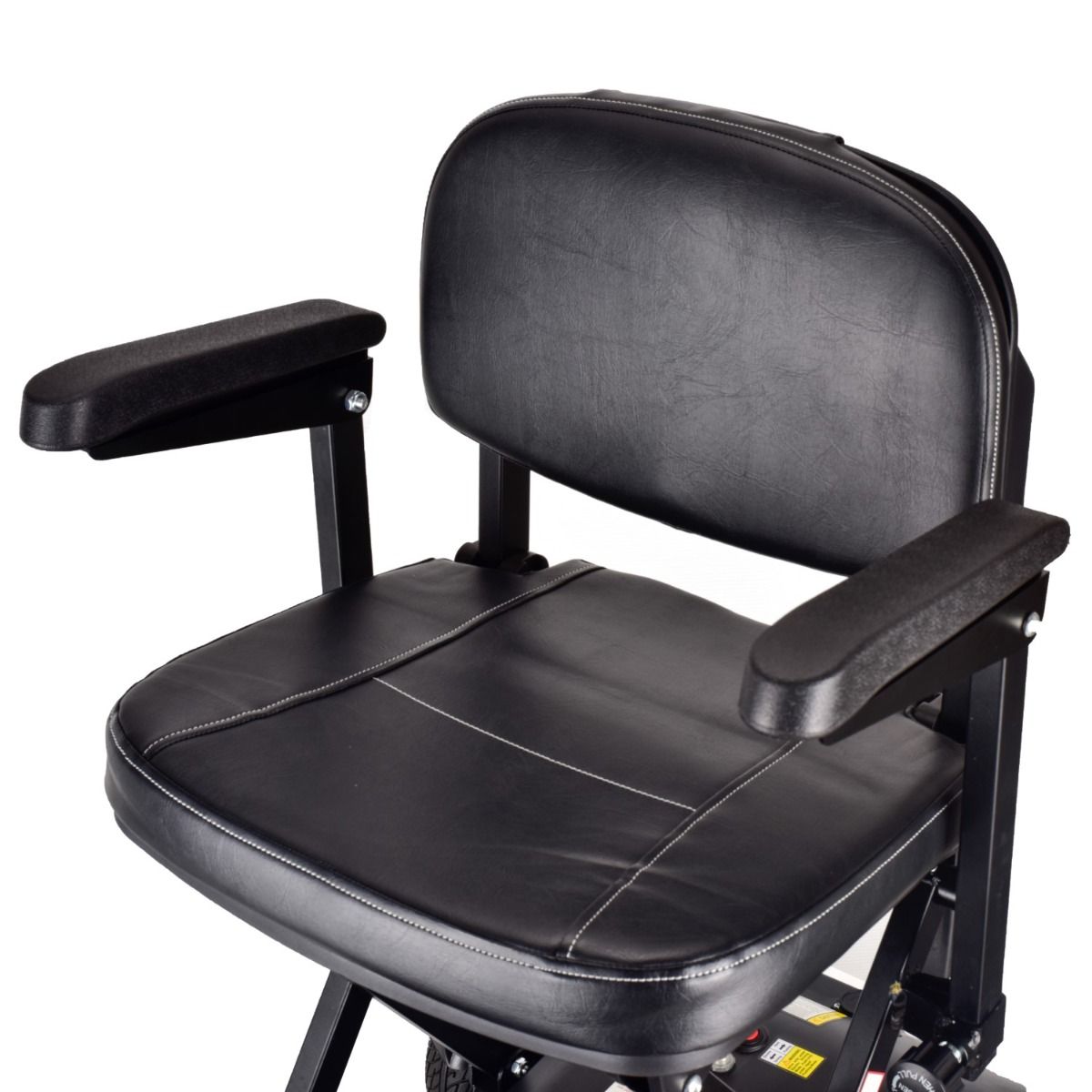

- Padded comfy seat.

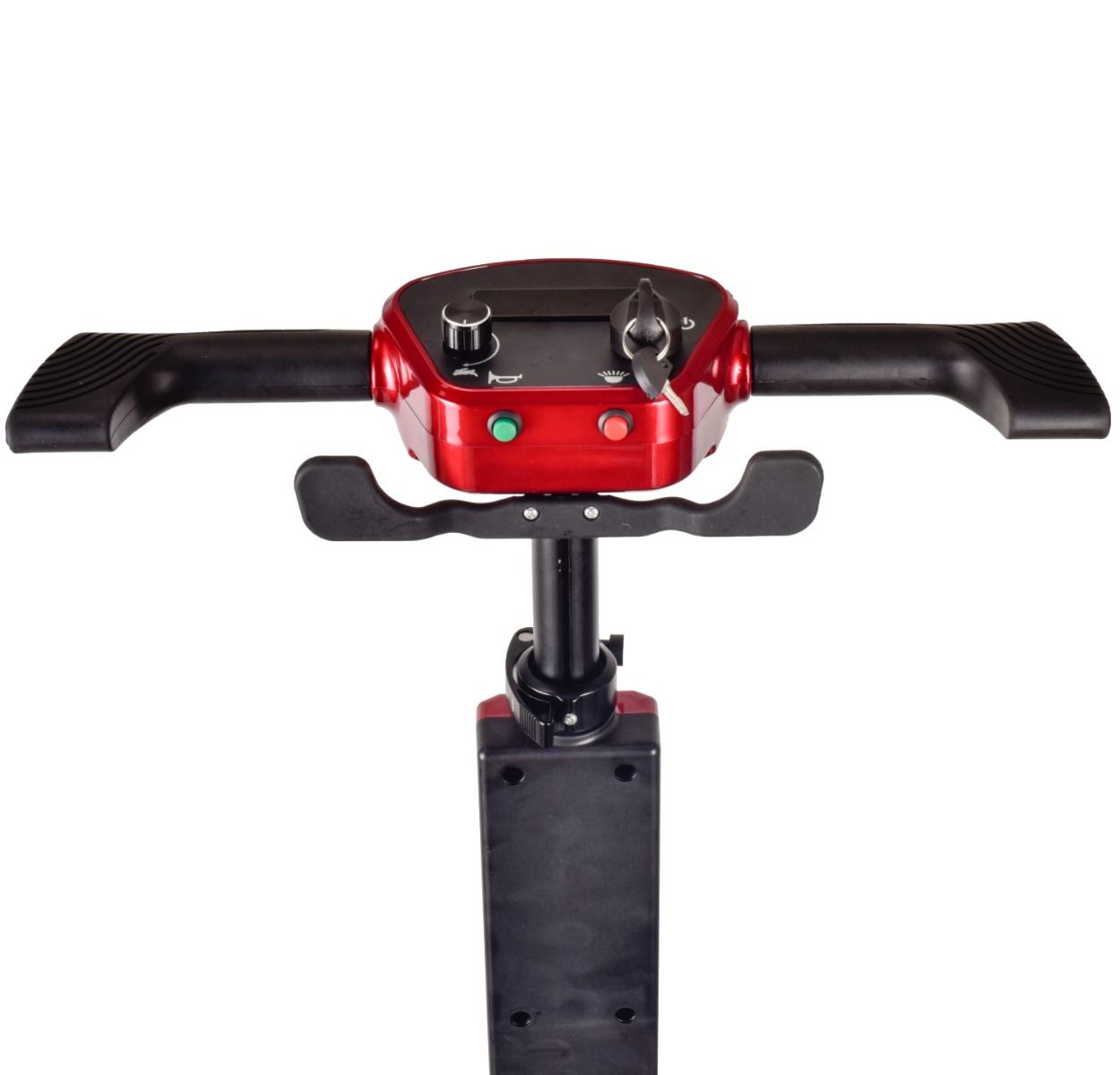

- Adjustable steering column to get the most comfortable driving position.
- Battery level indicator.

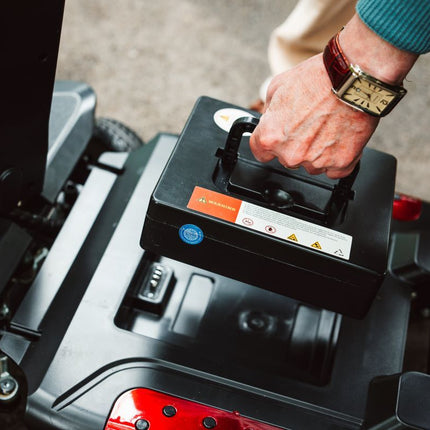

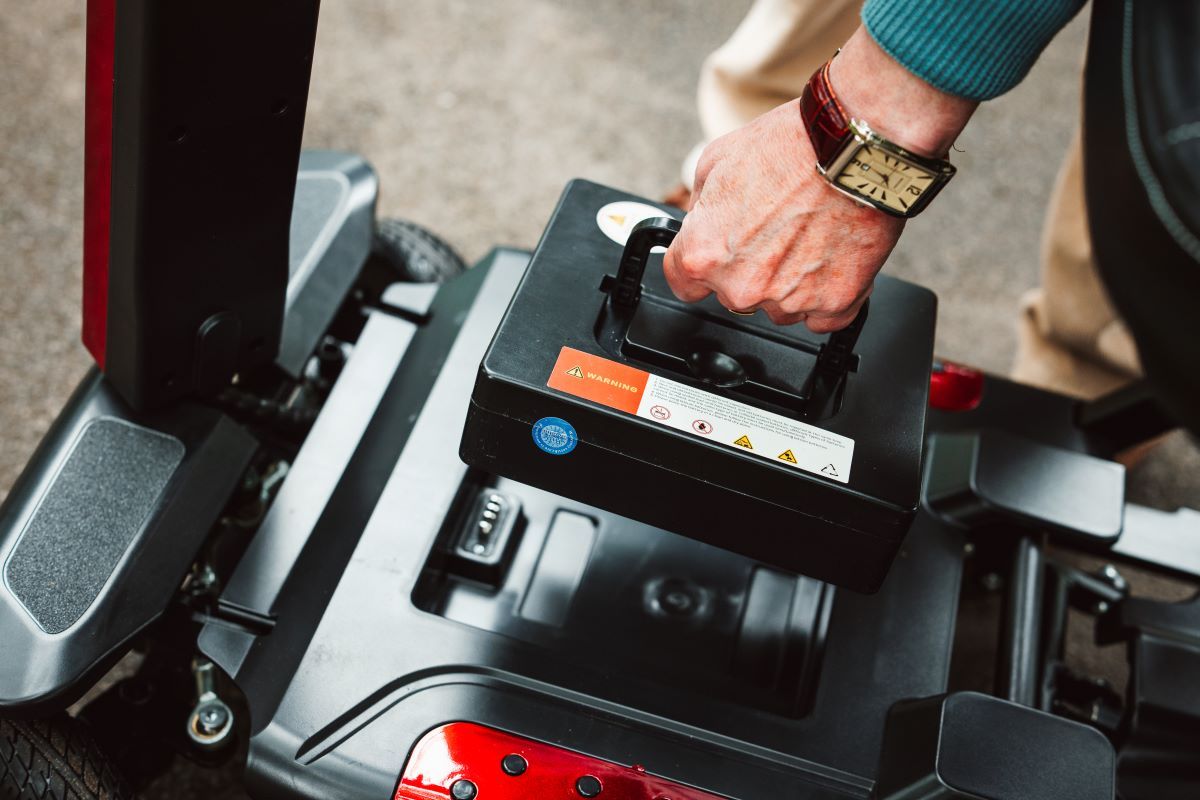

- Removeable battery for easier charging.
| Engine / Motor Size |
Not Applicable |
| Deck Material |
Aluminium |
| Fuel Type |
Electric |
| Max. Range |
10-15km |
| Battery |
24V 10AH lithium removable |
| Charge Time |
Around 6 Hours |
| Max. Speed |
0-6km/h |
| Front Brakes |
Electromagnetic brake system |
| Rear Brakes |
Electromagnetic brake system |
| Front Tyres |
197*64mm |
| Rear Tyres |
197*64mm |
| Starting System |
Key |
| Transmission |
Automatic |
| Wheel Base |
98cm |
| Seat Height |
Fixed |
| Ground Clearance |
75mm |
| Net Weight |
24kgs (Including Battery) |
| Licence Requirements |
This mobility scooter can be legally driven on pavements and in shopping centres etc without a license. |
| Packing Info |
50x50x70cm |
